Scout Specifications

Key Features

  • Plug and play-installs in seconds under the dash of vehicles 1996 and newer. Mobile app for Android and iOS for tracking on the go.

  • Real-time GPS updates up to every 15 seconds. Nationwide coverage (USA)

  • View location details with Google Maps, store up to 6 months of driving history online and set custom geo-fences with text and email alerts.

  • Track one vehicle, or hundreds! and monitor unsafe driving behaviors like hard cornering, acceleration and braking.

  • Try before you buy! Call 317-662-4636 for a free demo login and live software training.

  • $22.50 A Month | No Activation Fees | No Contracts | No Termination Fees

Additional Specifications

General

  • General communication modes GRPS/EDGE/HSPA and CDMA 1xRTT packet data, UDP and SMS messages 20,000 buffered messages.
  • Geo fence 25 radial and 25 polygonal geofences onboard device, user definable
  • Automatic over the air firmware and configuration updates via PULS GPS location technology 50+ channel GPS (with SBAS)
  • SBAS: WAAS,EGNOS,MSAS,GAGAN Location Accuracy 2.0 meter CEP (with SBAS) Tracking Sensitivity-162 dBm Acquisition Sensitivity -148dBm AGPS Capable

Cellular

  • CDMA on the Verizon network (also available in quad-band GSM)
  • Data Support SMS, UDP Packet Data
  • Operating Bands (MHZ) GSM/GRPS: 850/900/1800/1900
  • CDMA/1XRTT: 850/1800
  • HSPA/UMTS: 800(VI)/850(V)/900(VIII)/1700(IV)/1900(II)/2100(I)
  • Transmitter Power GSM/GRPS: 850/900, 32.5 dBm 1800/1900, 29.5 dBm
  • CDMA/1XRTT : 850, 24 dBm
  • HSPA/UMTS All bands, 23 dBm
  • HSPA Data Rates 5.6 Mbps upload/7.2 Mbps download HSPA fallback EDGE/GRPS/GSM quad band
  • EDGE MCS1-MCS9 3GPP Release 6
  • Interfaces OBD-II Interface J1850 PWM, J1850 VPW, ISO-9141-2, ISO-14230, KWP2000, ISO-15765, CAN Outputs None Bluetooth 4.0 Dual Mode (optional fit) Status LEDs GPS, OBD-II and Cellular

Environmental

  • Temperature -30° to +75° C (operating); -40° to +85° C (storage) Humidity 95% RH @ 50° C non-condensing Shock and Vibration SAE J1455 EMC/EMISAE J1113; FCC-Part 15B; Industry Canada RoHS Compliant
  • Electrical Operating Voltage 9-16 VDC Vehicle Systems Internal Battery 200 mAH Sleep Mode ultra low power sleep <3mA
  • Physical Dimensions 43 x 68 x 25 mm Weight <52g Enclosure Rugged textured plastic enclosure
  • Communications OBD, Cellular and GPS Accelerometer 3 axis 16g, sampling at 400Hz for driver behavior and crash detection
  • Connectors, SIM Access Connection Type Built-In OBD-II/EOBDII interface via J1962 compliant connector SIM access internal SIM fitted during manufacturing
  • Certifications fully certified FCC, CE, IC, PTCRB, applicable carriers
  • Mounting Built-in OBD-II connector Self-adhesive mounting with OBD-II extender cable

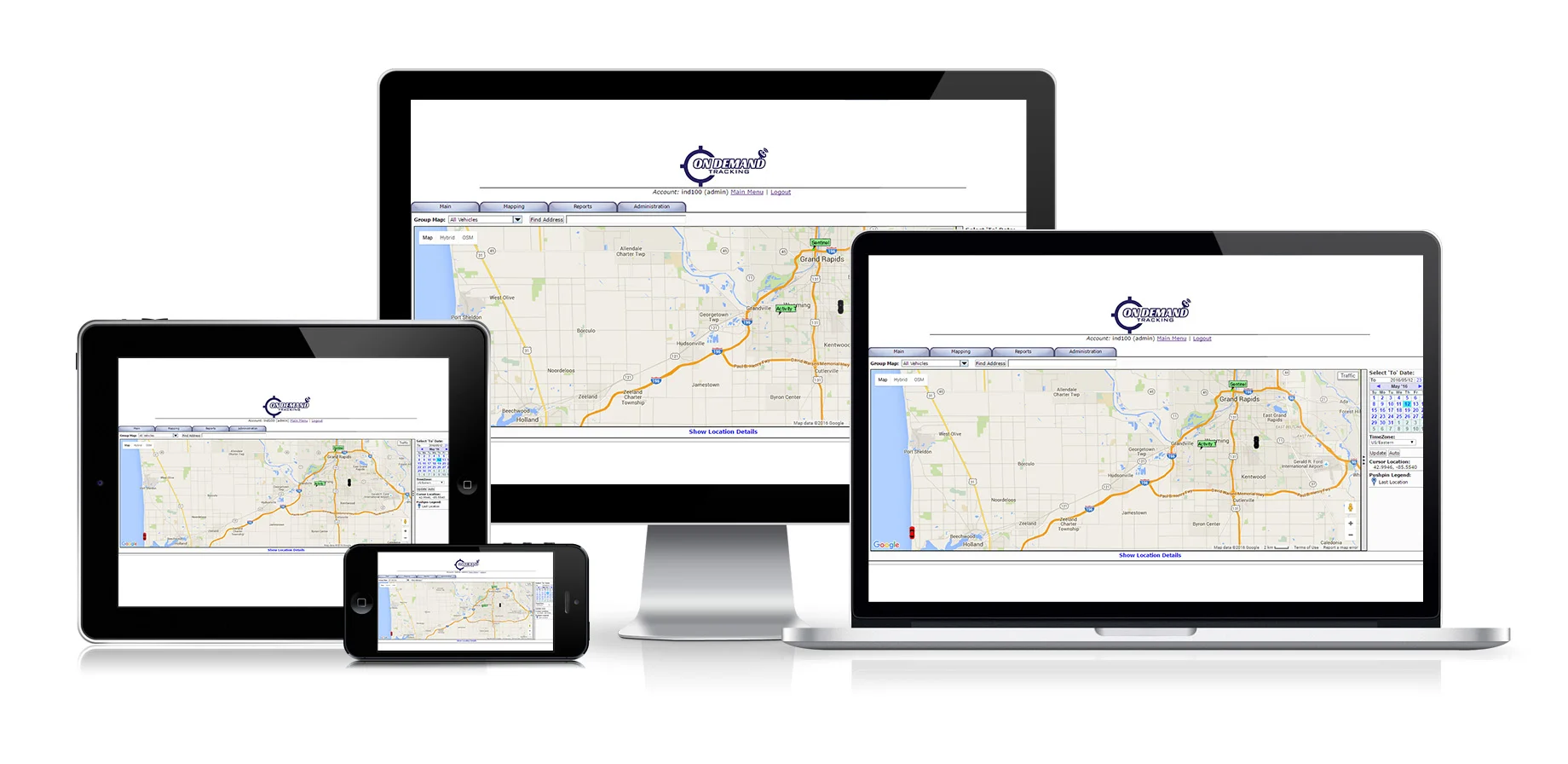

You can access our easy to use tracking platform from any web enabled device! We also have applications for both Android and iOS.

You can access our easy to use tracking platform from any web enabled device! We also have applications for both Android and iOS.
