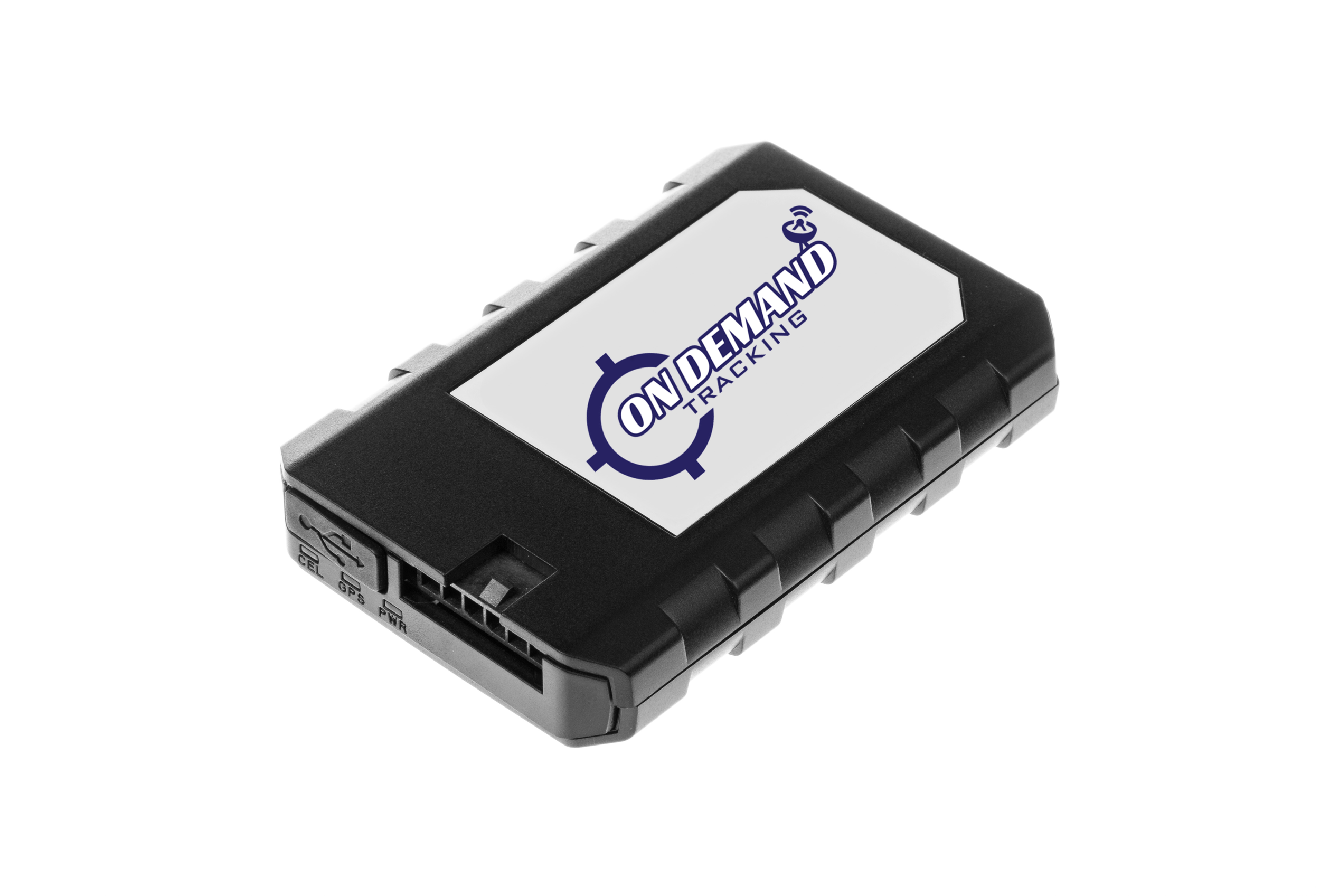

Watchman Lite Specifications

Key Features

  • Hard-Wired Setup Makes For A Covert Installation

  • Accurate Real-Time GPS Tracking Available 24/7 From Any Web Enabled Device

  • Text Message And Email Alerts | Speed, Geo-Fence, Battery etc....

  • Powerful Anti-Theft Features Include Disabling Vehicles Starting System With The Click Of A Button ( With Optional Starter-Kill Relay)

  • Powered By Easy To Use Google Maps Interface

  • Try before you buy! Call 317-662-4636 for a free demo login and live software training.

  • $19.00 A Month | No Activation Fees | No Contracts | No Termination Fees

Additional Specifications

  • CDMA on the Verizon network (also available in quad-band GSM)
  • Class 4 (2W @ 850/900 MHz)
  • Class 1 (1W @ 1800/1900 MHz)
  • GRPS multi-slot class 12
  • GRPS mobile station class B
  • RMS Phase Error 5 deg
  • Max Out RF Power GSM850/GSM900: 33.0+2 dBm
  • DCS/PCS: 30.0+2 dBm
  • Dynamic Input Range -15~ -108 dBm
  • Receiver Sensitivity Class II RBER 2% (-107 dBm)
  • Stability Of frequency < 2.5ppm
  • Max Frequency Error +0.1 ppm

Interfaces

  • Digital Inputs-2 digital inputs
  • One positive trigger for ignition detection
  • One negative trigger input for normal use
  • Digital outputs-One digital output, open drain 150 mA max current drain
  • GSM Antenna internal only
  • GPS Antenna Internal only
  • Indicator LED GSM,GPS and power
  • Mini USB Port for upgrading and debugging

General Specifications

  • Dimensions 63mm*50mm*13.2mm
  • Weight 44g
  • Operating Voltage 8V to 16V DC
  • Operating Temperature -30°C ~ +80°C  -40°C ~ +85° for storage

Air Interface Protocol

  • Power On Report -Report when the device is powered on
  • Special Alarm-Special alarm based on the digital inputs
  • Remote Control-OTA control of digital outputs
You can access our easy to use tracking platform from any web enabled device! We also have applications for both Android and iOS.
