On Demand Tracking

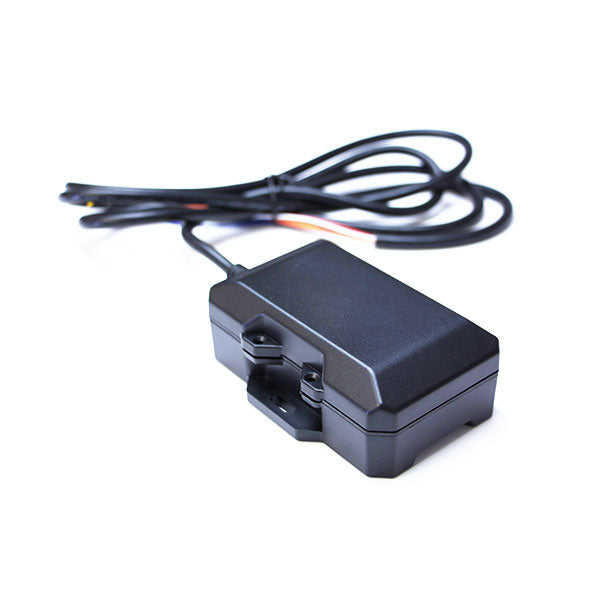

Guardian

Guardian

$199.00
$199.00
Sale Sold out

Powerful and rugged, the Guardian is the perfect choice for tracking trailers and heavy equipment. Featuring a long-lasting internal battery for periods when an asset is without power, the Guardian can last for extended periods of non-use. This unit also features an IP66 Sealed enclosure to ensure consistent operation in even the harshest conditions. Monitor trailer locations, equipment engine hours, time spent on job sites, and much more! This helps businesses become more productive and save money on labor and maintenance.

KEY FEATURES

  • Accurate Real-Time GPS Tracking Available 24/7 From Any Web Enabled Device Plus Mobile App For Android & iOS

  • Text Message And Email Alerts | Speed, Geo-Fence, Battery etc....

  • Up To 6 Months Of Backup Operation On Internal Rechargeable Battery

  • Powered By Easy To Use Google Maps Interface

  • Try Before You Buy! Call 317-662-4636 And Get A Demo Account Login And Free Live Software Training

  • $19.00 A Month | No Activation Fees | No Contracts | No Termination Fees



ADDITIONAL SPECIFICATIONS

General

  • Communication Modes
    • GPRS/EDGE/HSPA and CDMA 1xRTT packet data, UDP, and SMS
  • Location Technology
    • 50 channel GPS
  • Operating Voltage
    • 12 and 24-volt vehicle systems

GPS

  • Location Technology
    • GPS; GLONASS, and QZSS capable
  • Enhancement Technology
    • SBAS: WAAS, EGNOS, MSAS
  • Receiver Type
    • 56 Channels
  • Location Accuracy2.0m
  • Location Update Rate
    • up to 10 Hz
  • Tracking Sensitivity
    • -162dBm
  • Acquisition Sensitivity
    • -148dBm
  • Anti-jamming
  • AGPS/Location assistance capable

Cellular

  • Data Support
    • SMS, GPRS, CDMA 1xRTT or HSPA packet data
  • Operating Bands (MHz)
    • GSM/GPRS:
      • 850/900/1800/1900
    • CDMA/1XRTT:
      • 850/1900
    • HSPA/UMTS:
      • 800(VI)/850(V)/900(VII)/1700(IV)/1900(II)/2100(I)
  • Transmitter Power
    • GSM/GPRS:
      • 850/900/1800/1900
    • CDMA/1XRTT:
      • 1900
    • HSPA/UMTS:
      • All bands
  • HSPA Data Rates
    • 5.6 Mbps upload/7.2 Mbps download
  • HSPA Fallback
    • EDGE/GPRS/GSM quad band
      EDGE MCS1-MCS9
      3GPP Release 6

Comprehensive I/O

  • Digital inputs
    • 1 fixed bias, 2 programmable bias
  • Digital outputs
    • 3 open collector (150mA)
  • Status LEDs
    • GPS and cellular

Environmental

  • Temperature
    • -30º to +85º C (operating); -30º to +85º C (storage)
  • Humidity
    • 95%RH @ 50º C non-condensing
  • Shock and Vibration
    • SAE J1455
  • EMC/EMI
    • SAE J1113; FCC–Part 15B; Industry Canada
  • RoHS Compliant

Electrical

  • Operating Voltage
    • 9-32 VDC (startup, operating)
      7-32 VDC (momentary)
  • Power Consumption
    • <1mA @ 12V (deep sleep)
      <16.7mA @ 12V (SMS only)
      <37mA @ 12V (SMS, data, and GPS)
      <75mA @ 12V (continuous transmit)
  • Back-Up Battery
    • 3.7 Volt Lithium-Ion 5.2Ah
      6-hour charge time
      -15 degrees to +55 degrees C charging temperature

Physical

  • Dimensions
    • 2.125 x 4.33 x 1.59”, (54 x 110 x 40.4mm)
  • Weight
    • 8 oz, (226g)

Connectors, SIM Access

  • SIM Access
    • Internal

Certifications

  • Fully certified FCC, CE, IC, PTCRB, applicable carriers

Mounting

  • Standard tie-wrap or adhesive
    Screw mounting bracke
View full details
